Introduction to Teflon® PTFE:
Polytetrafluoroethylene (PTFE) is a thermoplastic polymer that is a white solid at room temperature. It has excellent dielectric properties. This is especially true at high radio frequencies, making it suitable for use as an insulator in cables and connector assemblies and as a material for printed circuit boards.
Please find below an example to the successful PCB prototype that we have done using PTFE:
|

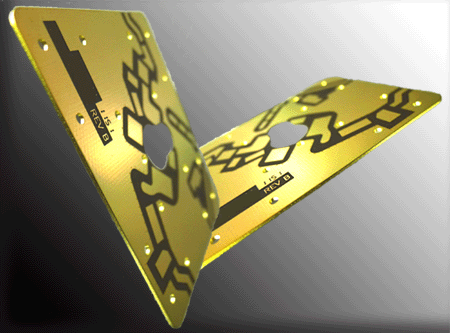

Actual Product Photo |
Specification |
 |
Layers: 2L
Thickness: 1.0mm
Finished Copper: 1.0 oz
Board Size: 62mm *75mm
Surface Finish: Immersion Gold 3u"
Min. Trace / Space: 90mil/ 50mil
Smallest Hole: 0.3mm
Special Specifications
Using PTFE
Arlon-AD250L03111
Copper to board edges
|
Following is the material specification for JetPCB PTFE:
|
Item No. |
Material Thickness
(mm) |
Copper Weight (oz) |
Size
(inch) |
Model No. |
Tg |
|
1 |
0.5 |
1/1 |
18*24 |
AD320 |
300~400 |
|
2 |
0.08 |
H/H |
36*48 |
AD255C03077 |
|
3 |
0.5 |
H/H |
12*18 |
AD450 |
|
4 |
2.6 |
1/1 |
18*24 |
AD1000 |
|
5 |
5.0 |
H/H |
18*24 |
AD1000L20055001 |
|
6 |
0.8 |
1/1 |
12*18 |
AD250L03111 |
Following is the PP specification for JetPCB PTFE:
|
Item No. |
PP Model No. |
Thickness (MIL) |
RC % |
Size (inch) |
|
1 |
92ML 0106 |
4MIL |
90% |
12*18 |
The above mentioned are FYI, thank you.
