Please find below some examples to the successful PCB prototypes that we have done:
Actual Product Photo:
|
Stack-up:
 |
|
Specification:
Layers: 8L
Thinkness: 3.0mm
Finished Copper: 6.0 oz
Board Size: 110mm* 170mm
Min. Trace / Space: 13mil/ 15mil
Smallest Hole: 0.5mm
Special Specification:
Filled Copper 6 oz
|
|

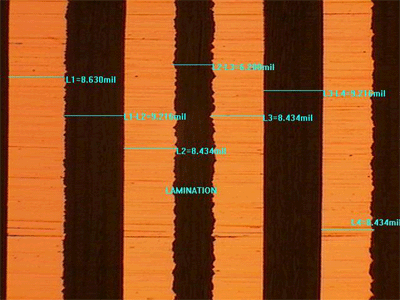

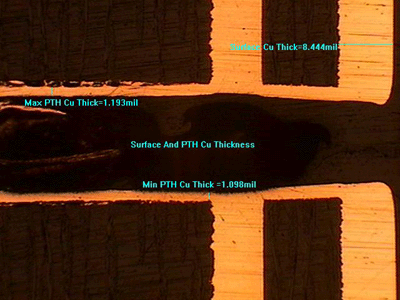

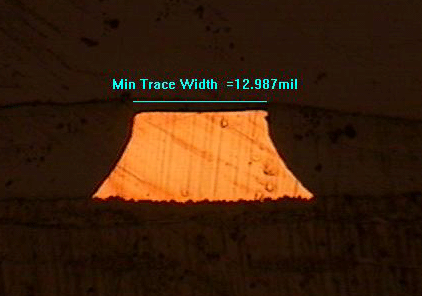

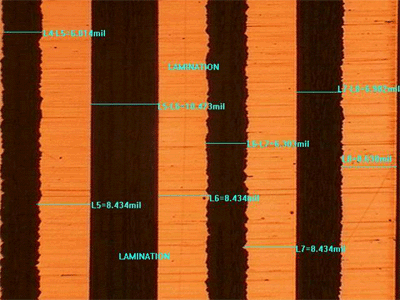

Micro-section report:
|
